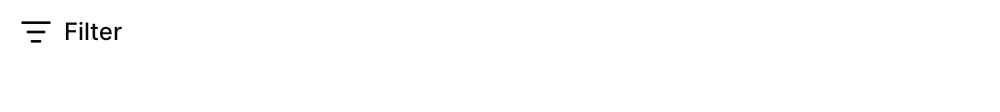

Using filters
{% table_filter
    id="my_filter"
    data="demo_daily_orders"
/%}

{% bar_chart
    data="demo_daily_orders"
    x="date"
    y="sum(total_sales)"
    filters=["my_filter"]
    date_grain="month"
/%}

​
Examples

​
Using filters

Using filters
{% table_filter
    id="my_filter"
    data="demo_daily_orders"
/%}

{% bar_chart
    data="demo_daily_orders"
    x="date"
    y="sum(total_sales)"
    filters=["my_filter"]
    date_grain="month"
/%}

​
Using Inline SQL

{% table_filter
    id="my_filter"
    data="demo_daily_orders"
/%}

```sql filtered_orders
select * from demo_daily_orders
where {{my_filter.filter}}
```

{% table data="filtered_orders" /%}

​
Custom Title

{% table_filter
    id="orders_filter"
    data="demo_daily_orders"
    title="Order Search"
/%}

​
Attributes

​
id
string
required
Unique identifier for the filter component
​
className
string
Additional CSS classes to apply
​
data
string
required
ID of the table to filter
​
title
string
default:"Filter"
Custom title text for the filter button (defaults to “Filter”)
​
defaultConjunction
string
default:"AND"
Default conjunction between filters (AND or OR)Allowed values:
  • AND
  • OR
​
columns
array
Array of column IDs to filter on. If not provided, all columns are available for filtering
​
labels
array
Array of custom labels to display instead of column names. Must match the order of the columns array.
​
showClearButton
boolean
default:"true"
Whether to show a clear button to remove all filters
​
minimumRecords
number
When set, string filters will only show values that have at least this many records, and filters will always use AND conjunction
​
multiple
boolean
default:"true"
When false, string filters will only allow selecting a single value instead of multiple values
​
initial_values
object
An object with column names as keys and this filter’s initial value for that column as the value
​
require_selection
array
An array containing column names that always require a selection. Only supports text columns.
​
width
number
Set the width of this component (in percent) relative to the page width

​
Using the Filter Variable

Reference this filter using {{filter_id}}. The value returned depends on where you use it.
ContextDefault PropertyNo SelectionResult
Inline SQL query.filtertruecategory = 'Electronics' AND total_sales > 1000
where attribute.filtertruecategory = 'Electronics' AND total_sales > 1000
Text / Markdown.filtertruecategory = 'Electronics' AND total_sales > 1000

​
Available Properties

You can also access specific properties using {{filter_id.property}}:

​
.filter

Returns a complete SQL filter expression combining all active filter conditions. Returns true when no filters are active.
{% table_filter id="my_filter" data="demo_daily_orders" /%}

```sql filtered_orders
select * from demo_daily_orders
where {{my_filter}}
```
Example value: category = 'Electronics' AND total_sales > 1000
