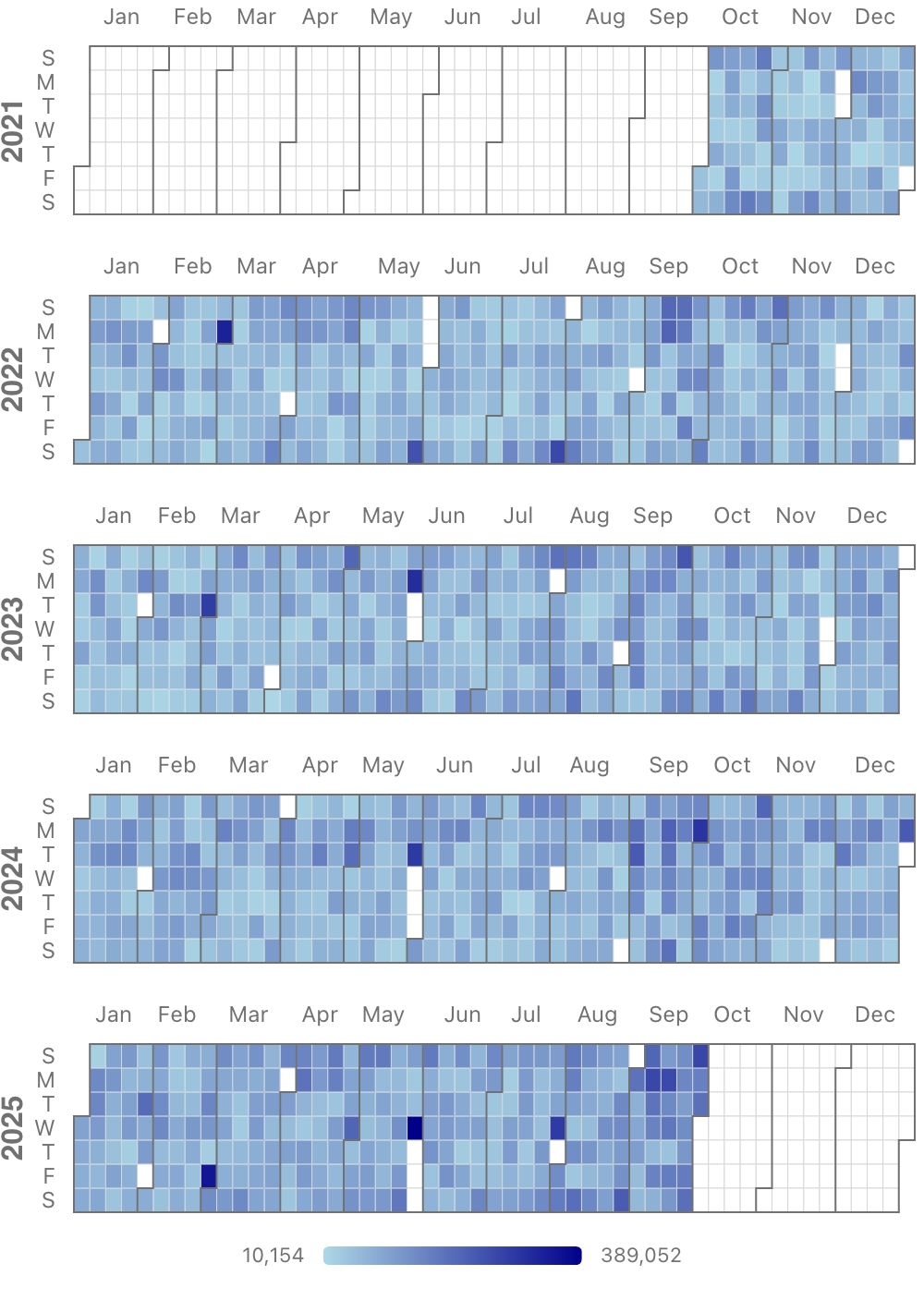

Basic Usage
{% calendar_heatmap
    data="demo_daily_orders"
    date="date"
    value="sum(total_sales)"
/%}

​
Examples

​

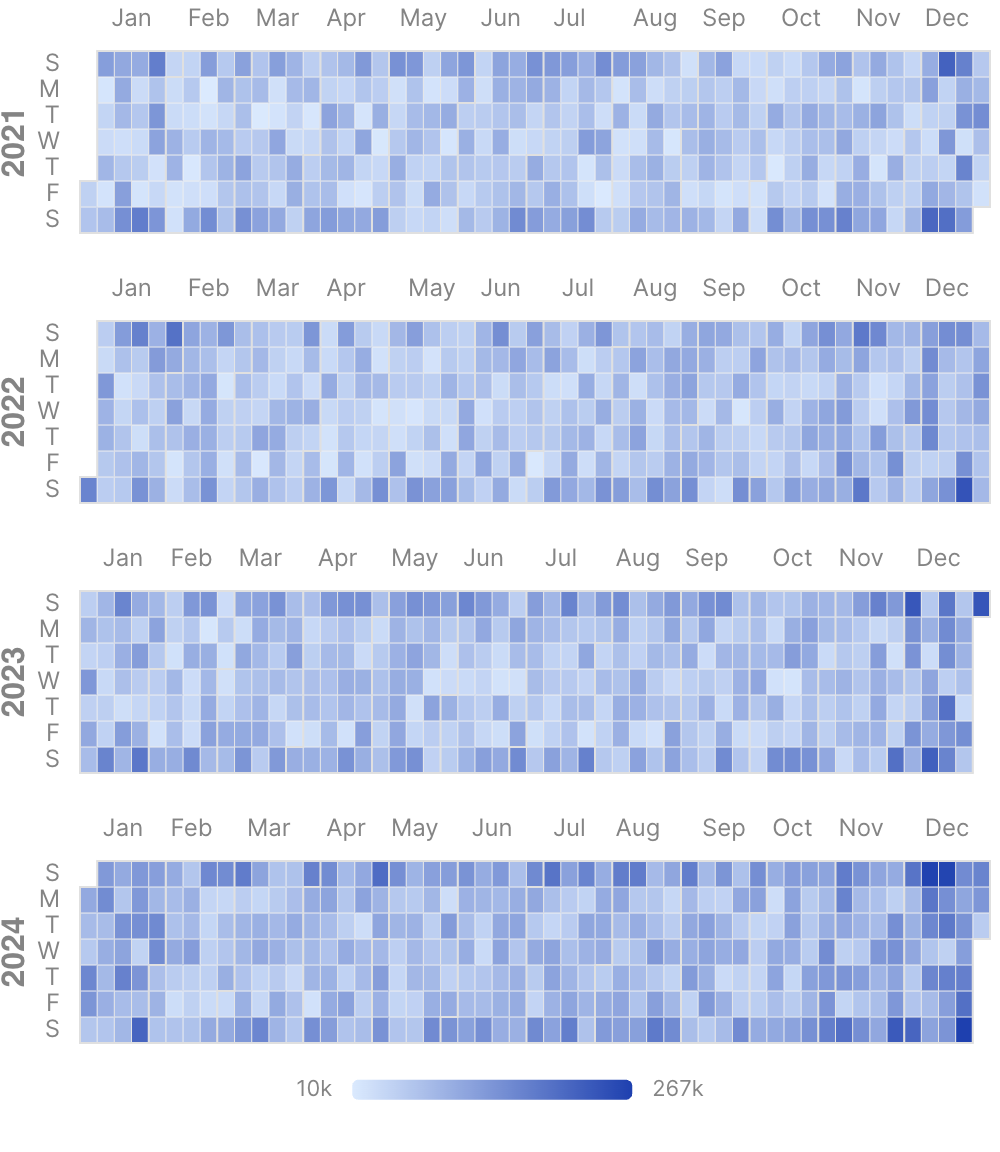

Basic Usage

Basic Usage
{% calendar_heatmap
    data="demo_daily_orders"
    date="date"
    value="sum(total_sales)"
/%}

​

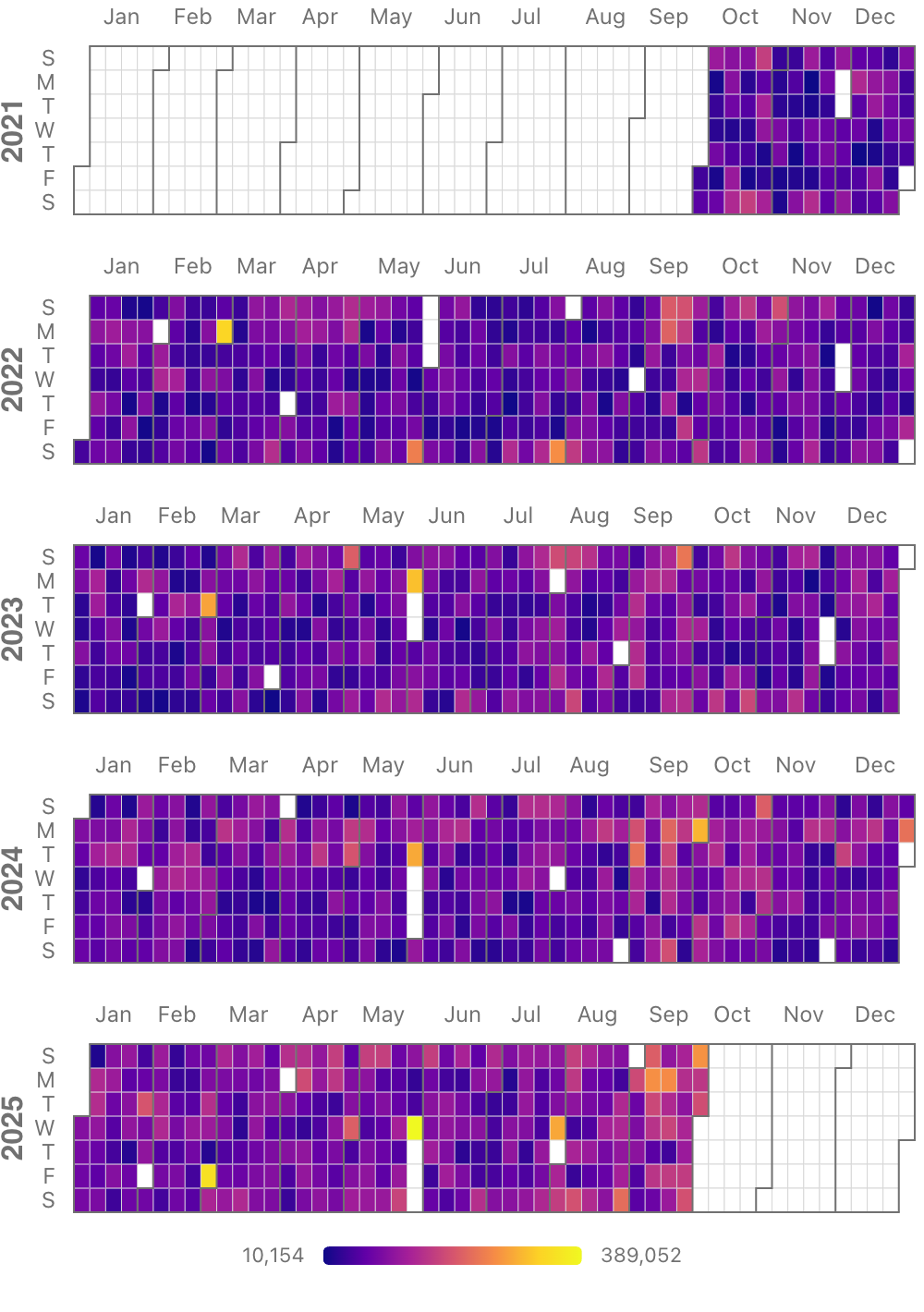

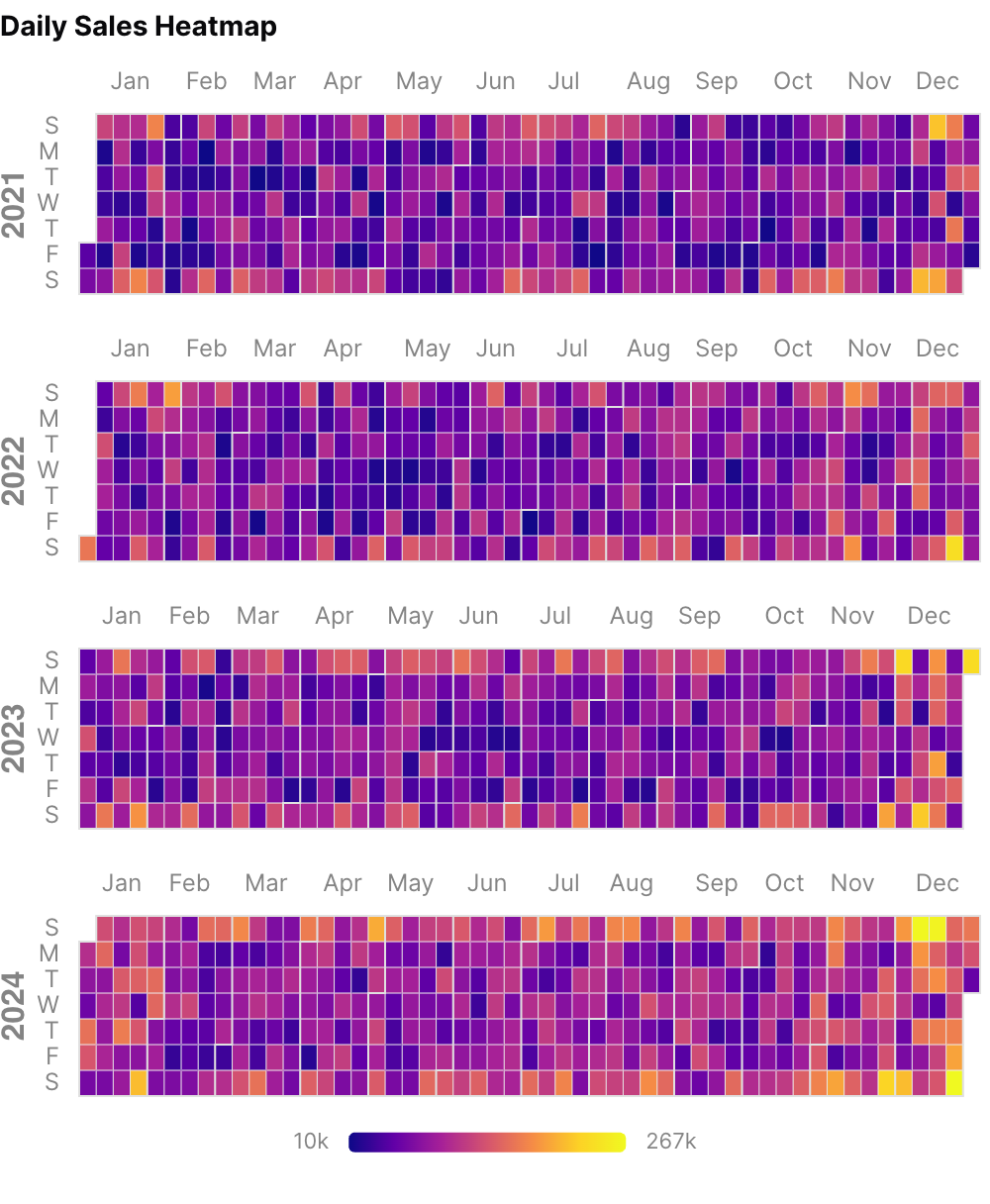

Calendar Heatmap with Custom Colors

Calendar Heatmap with Custom Colors
{% calendar_heatmap
    data="demo_daily_orders"
    date="date"
    value="sum(total_sales)"
    title="Daily Sales Heatmap"
    chart_options={
        color_palette = ["#0d0887", "#6300a7", "#a62098", "#d5546e", "#f68d45", "#fcd225", "#f0f921"]
    }
/%}

​

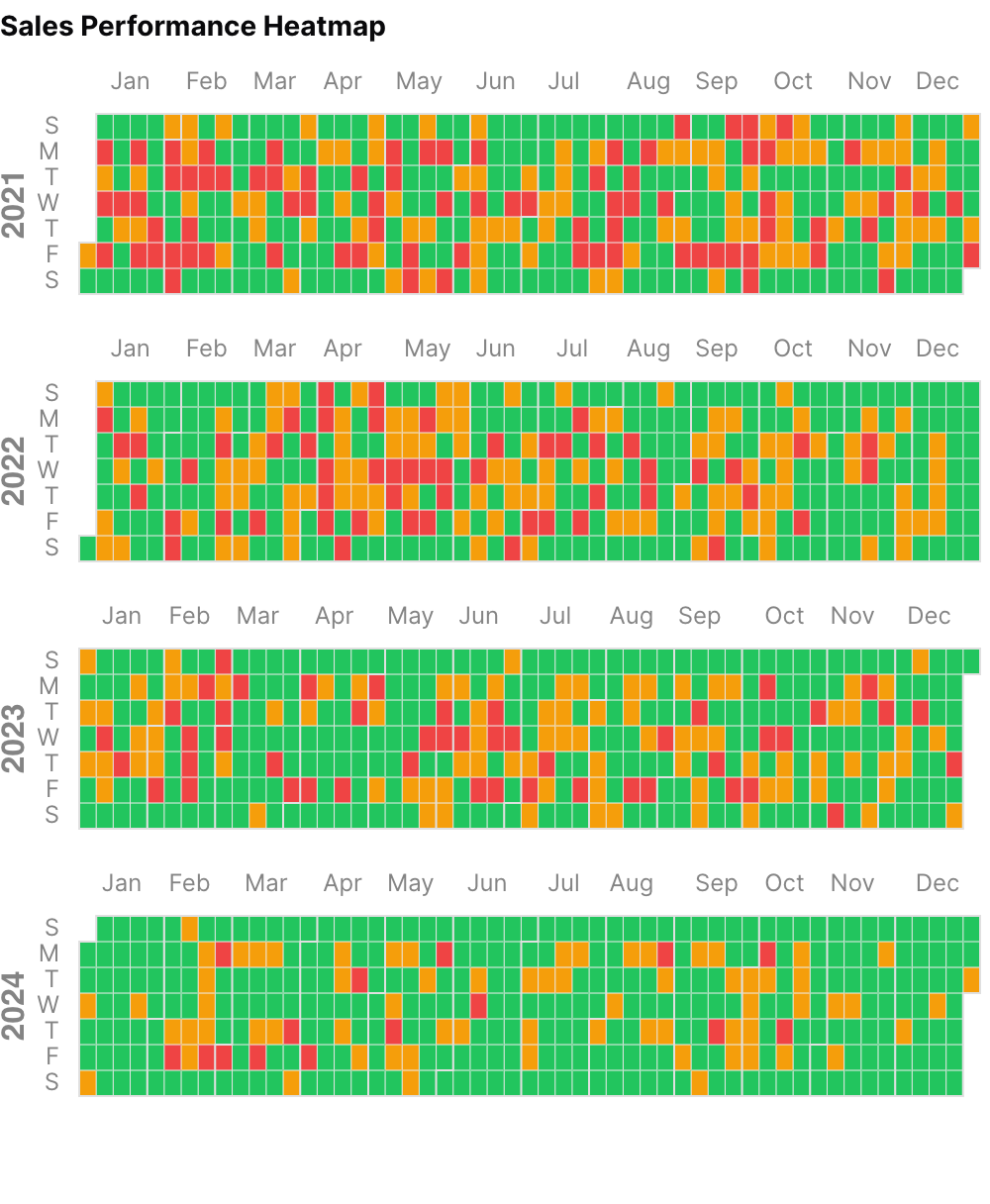

Calendar Heatmap with Conditional Colors

{% calendar_heatmap
    data="demo_daily_orders"
    date="date"
    value="sum(total_sales)"
    title="Sales Performance Heatmap"
    chart_options={
        conditional_colors = "case when sum(total_sales) > 1000 then '#22c55e' when sum(total_sales) > 500 then '#f59e0b' else '#ef4444' end"
    }
/%}

​

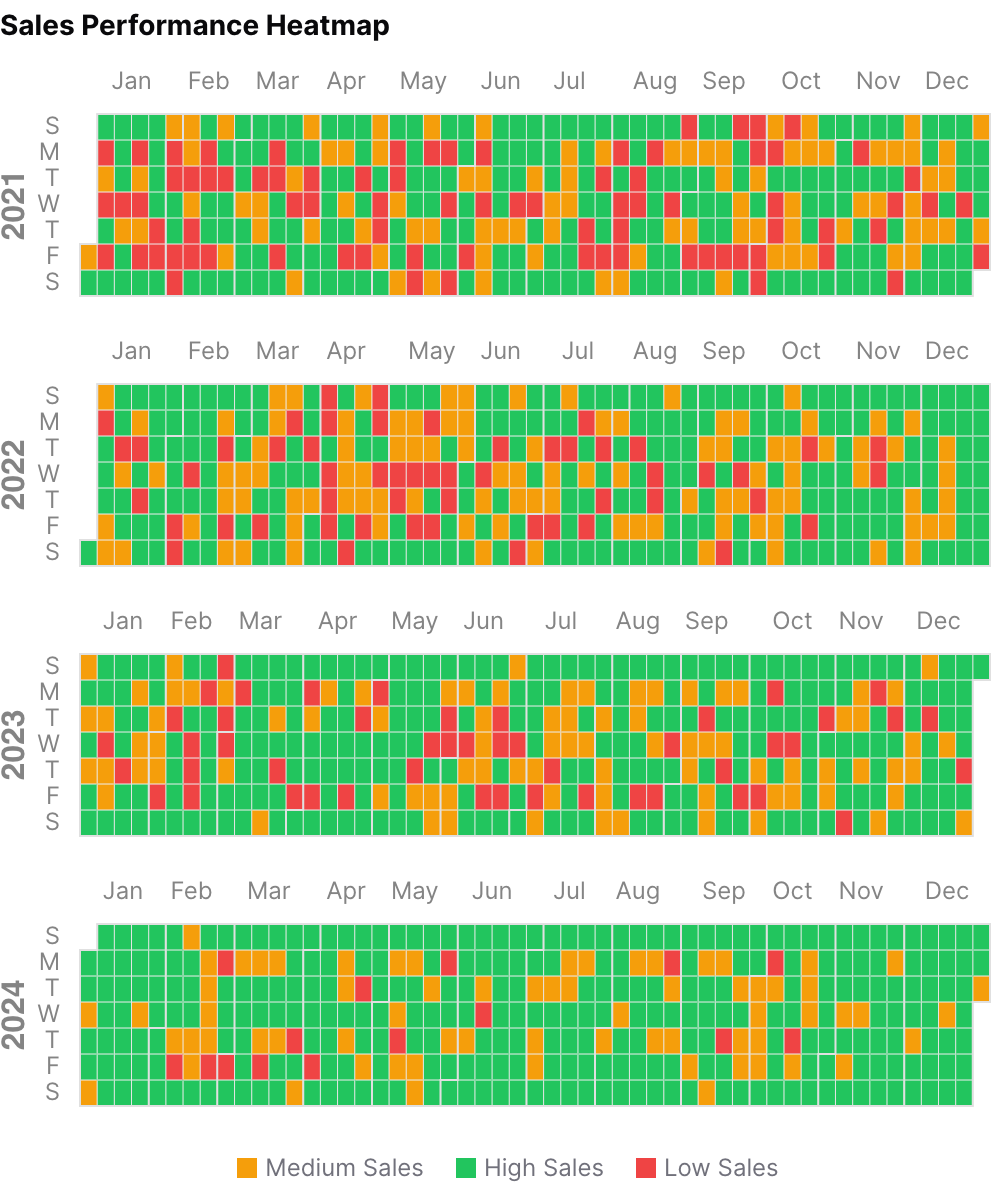

Calendar Heatmap with Conditional Colors and Legend

{% calendar_heatmap
    data="demo_daily_orders"
    date="date"
    value="sum(total_sales)"
    title="Sales Performance Heatmap"
    chart_options={
        conditional_colors="case when sum(total_sales) > 1000 then '#22c55e' when sum(total_sales) > 500 then '#f59e0b' else '#ef4444' end"
        color_map={
            "#22c55e"="High Sales"
            "#f59e0b"="Medium Sales"
            "#ef4444"="Low Sales"
        }
    }
/%}

​
Attributes

​
data
string
required
Name of the table to query
​
filters
array
IDs of filters to apply to the query
​
date_range
options group
Use date_range to filter data for specific time periods. Accepts predefined ranges (e.g., “last 12 months”), dynamic ranges (e.g., “Last 90 days”), custom date ranges (e.g., “2020-01-01 to 2023-03-01”), or partial ranges (e.g., “from 2020-01-01”, “until 2023-03-01”)Example:
date_range={
  range = "last 7 days"
  date = "string"
}
Attributes:
  • range: string - Time period to filter. Use presets like ‘last 7 days’, dynamic patterns like ‘Last 90 days’, custom ranges like ‘2020-01-01 to 2023-03-01’, or partial ranges like ‘from 2020-01-01’.
    • Allowed values:
      • last 7 days
      • last 30 days
      • last 3 months
      • last 6 months
      • last 12 months
      • week to date
      • month to date
      • quarter to date
      • year to date
      • previous week
      • previous month
      • previous quarter
      • previous year
      • all time
  • date: string - Date column to filter on. Required when the data has multiple date columns.
​
date
string
required
Column name for dates
​
value
string
required
Column name for cell values
​
title
string
Title to display above the chart
​
subtitle
string
Subtitle to display below the title
​
info
string
Information tooltip text (can only be used with title)
​
info_link
string
URL to link the info text to (can only be used with info)
​
info_link_title
string
Create a custom link title for the info link, placed after the info text (can only be used with info_link)
​
value_fmt
string
default:"num"
Format for values. See Value Formatting for available formats.
​
legend
boolean
default:"true"
Show color scale legend
​
borders
boolean
default:"true"
Show borders between calendar cells
​
chart_options
options group
Color and styling options for the heatmapAttributes:
  • color_palette: array - Array of hex colors for the heatmap gradient
  • conditional_colors: string - SQL CASE expression returning hex colors based on value
  • color_map: map - Maps hex colors to legend labels when using conditional_colors
​
where
string
Custom SQL WHERE condition to apply to the query. For date filters, use date_range instead.
​
having
string
Custom SQL HAVING condition to apply to the query after GROUP BY
​
limit
number
Maximum number of rows to return from the query. Note: When used with tables, limit will disable subtotals to prevent incomplete subtotal rows.
​
order
string
Column name(s) with optional direction (e.g. “column_name”, “column_name desc”)
​
qualify
string
Custom SQL QUALIFY condition to filter windowed results
​
width
number
Set the width of this component (in percent) relative to the page width
