Basic Usage
{% pie_chart
    data="demo_daily_orders"
    category="category"
    value="sum(total_sales)"
/%}

​
Examples

​
Basic Usage

Basic Usage
{% pie_chart
    data="demo_daily_orders"
    category="category"
    value="sum(total_sales)"
/%}

​

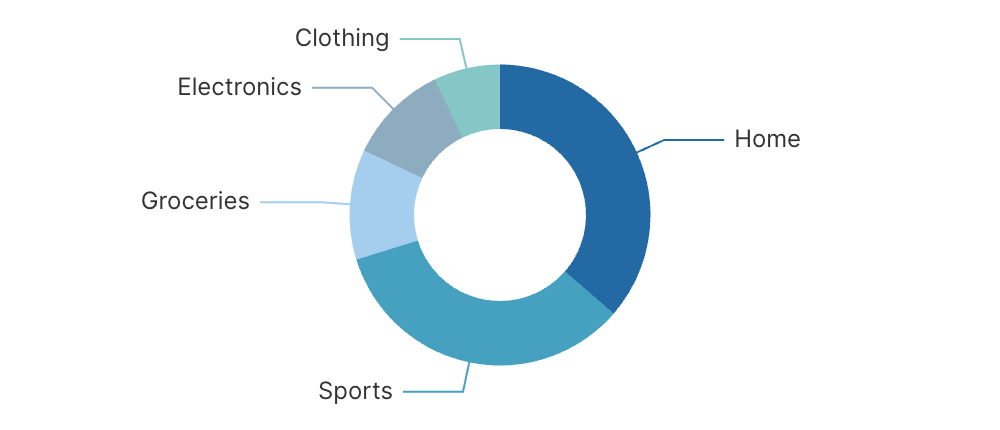

Pie Chart with Title

Pie Chart with Title
{% pie_chart
    data="demo_daily_orders"
    value="sum(total_sales)"
    category="category"
    title="Sales by Category"
/%}

​

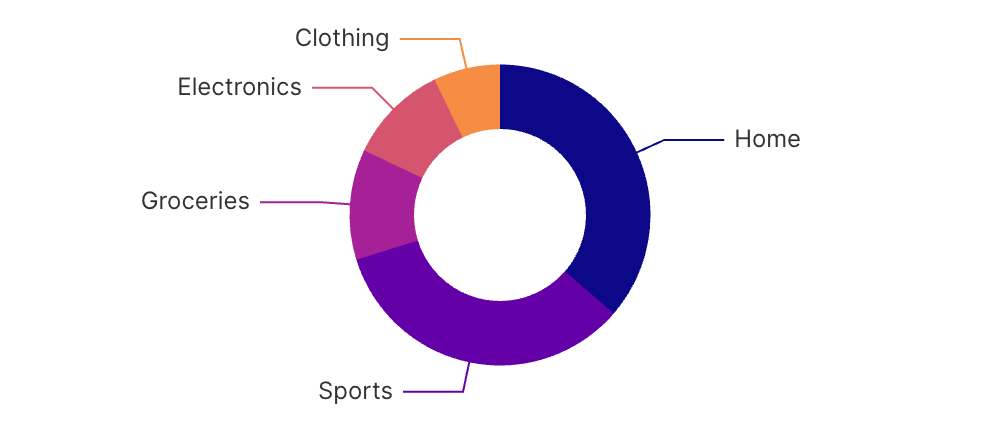

With Custom Colors

With Custom Colors
{% pie_chart
    data="demo_daily_orders"
    category="category"
    value="sum(total_sales)"
    title="Sales by Category"
    chart_options={
        color_palette = ["#0d0887", "#6300a7", "#a62098", "#d5546e", "#f68d45", "#fcd225", "#f0f921"]
    }
/%}

​
Attributes

​
data
string
required
Name of the table or view to query
​
filters
array
IDs of filters to apply to the query
​
date_range
options group
Use date_range to filter data for specific time periods. Accepts predefined ranges (e.g., “last 12 months”), dynamic ranges (e.g., “Last 90 days”), custom date ranges (e.g., “2020-01-01 to 2023-03-01”), or partial ranges (e.g., “from 2020-01-01”, “until 2023-03-01”)Example:
date_range={
  range = "last 7 days"
  date = "string"
}
Attributes:
  • range: string - Time period to filter. Use presets like ‘last 7 days’, dynamic patterns like ‘Last 90 days’, custom ranges like ‘2020-01-01 to 2023-03-01’, or partial ranges like ‘from 2020-01-01’.
    • Allowed values:
      • last 7 days
      • last 30 days
      • last 3 months
      • last 6 months
      • last 12 months
      • week to date
      • month to date
      • quarter to date
      • year to date
      • previous week
      • previous month
      • previous quarter
      • previous year
      • all time
  • date: string - Date column to filter on. Required when the data has multiple date columns.
​
category
string
required
Column name for categories (pie slices)
​
value
string
required
Column name for values (slice sizes)
​
title
string
Title to display above the component
​
subtitle
string
Subtitle to display below the title
​
info
string
Information tooltip text (can only be used with title). Displays an info icon next to the title.
​
info_link
string
URL to link the info text to (can only be used with info)
​
info_link_title
string
Create a custom link title for the info link, placed after the info text (can only be used with info_link)
​
inner_radius
string
default:"40%"
Inner radius of the pie (use 0% for full pie, >0% for donut style)
​
value_fmt
string
default:"num"
Format for values. See Value Formatting for available formats.
​
legend
boolean
default:"false"
Show legend instead of slice labels
​
legend_location
string
default:"top"
Position of the legend (top or bottom)Allowed values:
  • top
  • bottom
​
chart_options
options group
Chart configuration optionsAttributes:
  • color_palette: array
​
where
string
Custom SQL WHERE condition to apply to the query. For date filters, use date_range instead.
​
having
string
Custom SQL HAVING condition to apply to the query after GROUP BY
​
limit
number
Maximum number of rows to return from the query. Note: When used with tables, limit will disable subtotals to prevent incomplete subtotal rows.
​
order
string
Column name(s) with optional direction (e.g. “column_name”, “column_name desc”)
​
qualify
string
Custom SQL QUALIFY condition to filter windowed results
​
width
number
Set the width of this component (in percent) relative to the page width
​
height
number
Set a fixed height for the chart in pixels
