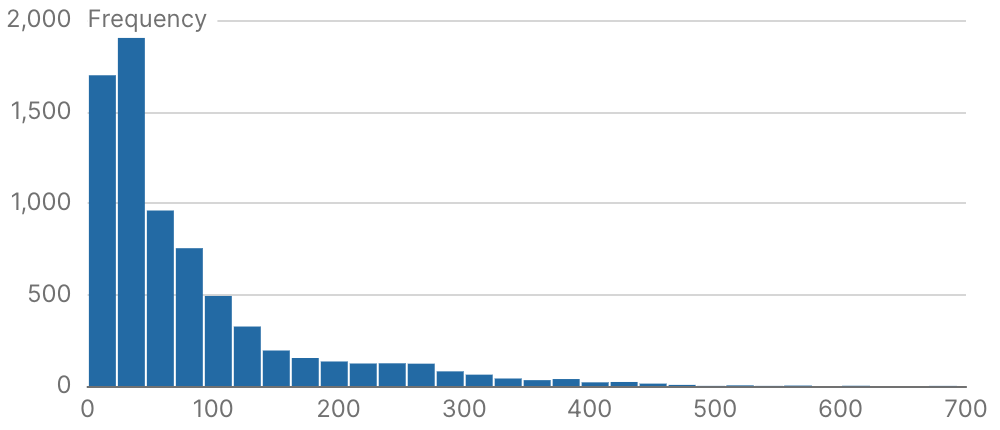

Example

{% histogram
    data="demo_daily_orders"
    value="transactions"
    bin_count=30
/%}

​
Attributes

​
data
String
required
Name of the table to query
​
value
String
required
SQL expression for the values to create histogram for
​
series
String
Column name to group data by series
​
chart_options
default:"{}"
Chart configuration optionsExample:
chart_options={
  color_palette = []
}
Attributes:
  • color_palette: array
​
bin_count
Number
default:"20"
Number of bins for the histogram (takes precedence over bin_width)
​
bin_width
Number
Width of each bin (ignored if bin_count is specified)
​
fmt
String
Format for the column values displayed in bin ranges
​
filters
Array
default:"[]"
Array of column names to use as filters
​
title
String
Title to display above the histogram
​
subtitle
String
Subtitle to display below the title
​
info
String
Info text to display in a tooltip next to the title. Can only be used with the title prop.
​
legend
Boolean
default:"true"
Show legend
​
where
String
Custom SQL WHERE condition to apply to the query. For date filters, use date_range instead.
​
limit
Number
Maximum number of rows to return from the query
​
width
Number
Set the width of this component (in percent) relative to the page width
