Using date_range
{% range_calendar id="date_filter" /%}

{% line_chart
    data="demo.daily_orders"
    x="date"
    y="sum(total_sales)"
    date_grain="month"
    date_range={
        date="date"
        range={{date_filter}}
    }
/%}

​
Examples

​

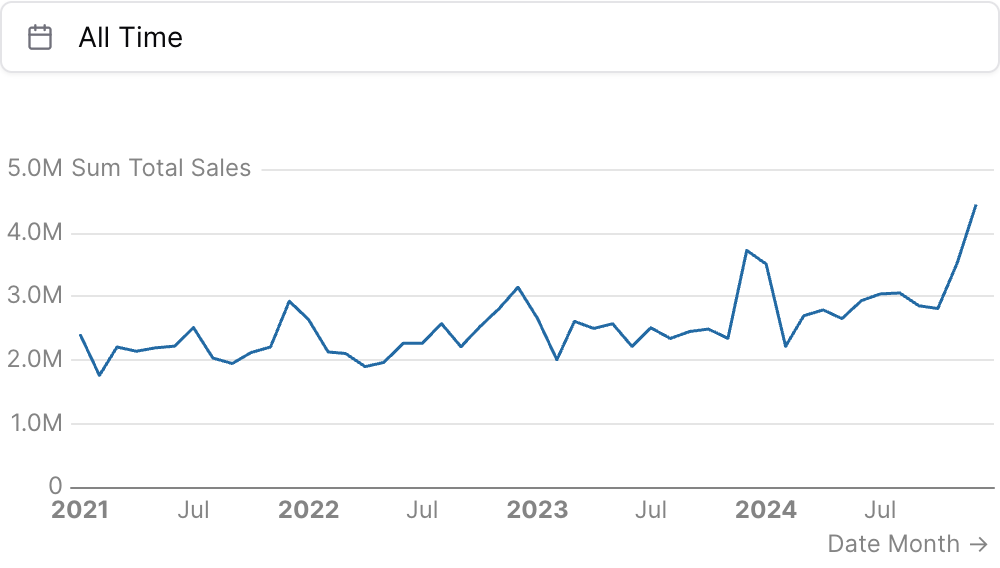

Using date_range

Using date_range
{% range_calendar id="date_filter" /%}

{% line_chart
    data="demo.daily_orders"
    x="date"
    y="sum(total_sales)"
    date_grain="month"
    date_range={
        date="date"
        range={{date_filter}}
    }
/%}

​
Using where

Using where
{% range_calendar id="date_filter" value_column="date" /%}

{% table
    data="demo.daily_orders"
    where="{{date_filter.filter}}"
/%}

​
Using filters

Using filters
{% range_calendar id="date_filter" value_column="date" /%}

{% big_value
    data="demo.daily_orders"
    value="sum(total_sales)"
    filters=["date_filter"]
/%}

​
Using Inline SQL

{% range_calendar id="date_filter" /%}

```sql filtered_orders
select * from demo.daily_orders
where date {{date_filter.between}}
```

{% table data="filtered_orders" /%}

​
Redefining “all time” with all_time_range

{% range_calendar id="date_filter" value_column="date" all_time_range="from 2022-12-01" /%}

{% big_value
    data="demo.daily_orders"
    value="sum(total_sales)"
    filters=["date_filter"]
/%}

​
Named presets with custom_ranges

{% range_calendar
    id="date_filter"
    custom_ranges=[
        { range="last 30 days" },
        { label="FY{start:yyyy}" range="from 2022-02-01" grain="year" },
        { label="Retail {end:yyyy}" range=[
            "2024-12-29 to 2025-12-27",
            "2025-12-28 to 2026-12-26"
        ] }
    ]
/%}

​
Attributes

​
id
string
required
The id of the date range picker to be used in SQL query templates (e.g., {{date_filter.filter}})
​
title
string
Text displayed above the date range picker
​
default_range
string
default:"all time"
Default range to select on load: a preset key, or an exact custom_ranges label. Defaults to “all time”.Allowed values:
  • today
  • yesterday
  • last 7 days
  • last 30 days
  • last 3 months
  • last 6 months
  • last 12 months
  • previous week
  • previous month
  • previous quarter
  • previous year
  • this week
  • this month
  • this quarter
  • this year
  • next week
  • next month
  • next quarter
  • next year
  • week to date
  • month to date
  • quarter to date
  • year to date
  • all time
​
defaultRange
string
default:"all time"
(deprecated) Use default_range instead. Default range preset to select on load.Allowed values:
  • today
  • yesterday
  • last 7 days
  • last 30 days
  • last 3 months
  • last 6 months
  • last 12 months
  • previous week
  • previous month
  • previous quarter
  • previous year
  • this week
  • this month
  • this quarter
  • this year
  • next week
  • next month
  • next quarter
  • next year
  • week to date
  • month to date
  • quarter to date
  • year to date
  • all time
​
preset_ranges
array
Array of date range keys to show in the preset list. If not provided, the default preset set is used. Single-day today/yesterday presets and forward-looking this .../next ... presets are not shown by default and must be explicitly included here. When “all time” is excluded and no default is specified, the first preset in this list becomes the default.
​
custom_ranges
array
Named presets added to the preset list. Each entry is { label, range, grain }: range is a window (or list of windows) in normal date-range syntax (e.g. “last 6 months”, “from 2022-02-01”, “2024-01-01 to today”); the optional grain (day/week/month/quarter/year) slices each window into one preset per period (e.g. a fiscal year per year), anchored to an explicit start date; the optional label names each preset with {start:CODE} / {end:CODE} tokens that format that boundary with any value-formatter date code ({start:yyyy} → 2024, {start:yy} → 24, {start:mmm} → Apr, {start:mmmm} → April, {start:mmm yyyy} → Apr 2024, {start:d} → 5, {start:qq} → Q2, {end:yy} → 24). Write each entry on its own single line (not expanded across lines), as in the examples below.
​
value_column
string
The date column to filter. When set, the calendar can be referenced directly with {{id.filter}} or listed in a chart’s filters prop — and returns true (a no-op) when no range is selected, so it never breaks the query. Leave it unset to instead reference the column yourself with {{id.between}}.
​
all_time_range
string
default:"unbounded"
Controls what “all time” resolves to in SQL. "unbounded" (default) makes .between emit IS NOT NULL, so where="date {{id.between}}" matches all rows and never breaks. "none" keeps the legacy empty string — use it with [[ ]] blocks or a | fallback when the clause should drop entirely (e.g. to keep NULL-date rows). You can also set a bounded range — a preset key (e.g. "last 12 months"), a custom_ranges label, or a range expression (e.g. "from 2022-12-01") — so “all time” resolves to that range everywhere (.between, .start, .end, and the date_range value).Allowed values:
  • today
  • yesterday
  • last 7 days
  • last 30 days
  • last 3 months
  • last 6 months
  • last 12 months
  • previous week
  • previous month
  • previous quarter
  • previous year
  • this week
  • this month
  • this quarter
  • this year
  • next week
  • next month
  • next quarter
  • next year
  • week to date
  • month to date
  • quarter to date
  • year to date
  • all time
​
width
number
Set the width of this component (in percent) relative to the page width

​
Using the Filter Variable

Reference this filter using {{filter_id}}. The value returned depends on where you use it.
ContextDefault PropertyNo SelectionResult
Inline SQL query.betweenIS NOT NULLBETWEEN toDate('2024-01-01') AND toDate('2024-12-31')
where attribute.betweenIS NOT NULLBETWEEN toDate('2024-01-01') AND toDate('2024-12-31')
Text / Markdown.rangeLast 6 Months

​
Available Properties

You can also access specific properties using {{filter_id.property}}:

​
.start

Returns the start date as a date expression. Empty when “all time” is selected — reference it only where an empty value should fail loudly (e.g. where date >= {{date_filter.start}}), not in a date spine or axis bound.
{% range_calendar id="date_filter" /%}

```sql filtered_data
select * from events
where event_date >= {{date_filter.start}}
```
Example value: toDate('2024-01-01')

​
.end

Returns the end date as a date expression. Empty when “all time” is selected (see .start).
{% range_calendar id="date_filter" /%}

```sql filtered_data
select * from events
where event_date <= {{date_filter.end}}
```
Example value: toDate('2024-12-31')

​
.filter

Returns a complete SQL filter expression for the date range — value_column >= start AND value_column <= end. Requires value_column: without it (or when no range is selected) it resolves to true, i.e. no filtering, so where="{{id.filter}}" silently returns everything unless value_column is set.
{% range_calendar id="date_filter" value_column="event_date" /%}

```sql filtered_data
select * from events
where {{date_filter.filter}}
```
Example value: event_date >= toDate('2024-01-01') AND event_date <= toDate('2024-12-31')

​
.between

Returns a WHERE-clause fragment for the date range: BETWEEN <start> AND <end> when a range is selected, and IS NOT NULL when “all time” is selected — so where="date {{date_filter.between}}" matches all rows and never breaks. Because “all time” emits IS NOT NULL, it excludes rows whose date is NULL; set all_time_range="none" to restore the legacy empty string (for use with [[ ]] blocks or | fallback).
{% range_calendar id="date_filter" /%}

```sql filtered_data
select * from events
where date {{date_filter.between}}
```
Example value: BETWEEN toDate('2024-01-01') AND toDate('2024-12-31')

​
.range

Returns a human-readable description of the selected range. This is the value to use with date_range attribute.
{% range_calendar id="date_filter" /%}

{% line_chart
    data="demo.daily_orders"
    x="date"
    y="sum(total_sales)"
    date_range={
        date="date"
        range={{date_filter}}
    }
/%}
Example value: Last 6 Months
