Dimension Grid

{% dimension_grid
    id="product_filter"
    data="demo.daily_orders"
/%}

Examples

Basic Usage

{% dimension_grid
    id="product_filter"
    data="demo.daily_orders"
/%}

With Explicit Dimensions and Metric

{% dimension_grid
    id="sales_filter"
    data="orders"
    dimensions=["category", "region"]
    metric="sum(sales)"
    fmt="usd"
    limit=5
/%}

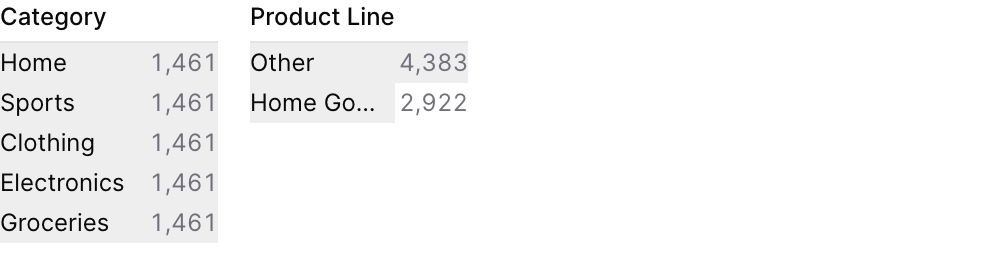

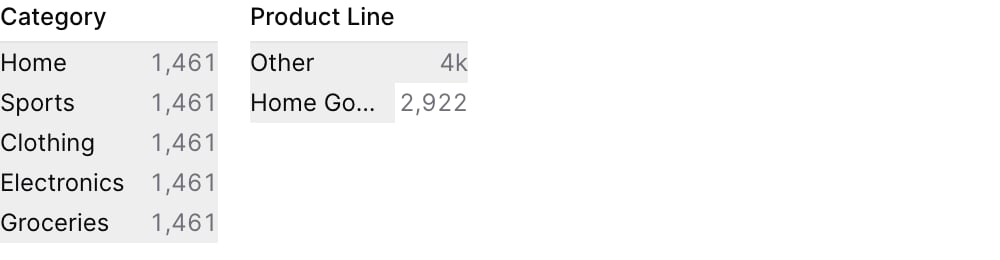

Using Filter in Query

{% dimension_grid id="order_filter" data="orders" /%}

```sql filtered_orders
select * from orders
where {{order_filter.filter}}
```

Attributes

string

required

The id of the dimension grid to use in a filters prop

string

required

Name of the table to query

array

Array of column names to display as dimensions. If not provided, auto-detects string columns.

string

default:"count(*)"

SQL aggregation expression (default: count(*))

string

Label displayed above the metric values

string

Format code for the metric values (e.g., “num0”, “usd”, “pct1”). See Value Formatting for available formats.

number

default:"10"

Maximum number of values to show per dimension (default: 10)

boolean

default:"true"

Allow multiple selections per dimension (default: true)

array

Array of filter IDs to apply when querying dimension values

string

SQL WHERE clause to filter data

string

Title displayed above the dimension grid

string

Subtitle displayed below the title

options group

Filter data to a time period. date_range is an OBJECT with range (the period) and optionally date (which column to filter on when the table has more than one). Shape: date_range={ range="last 12 months" date="order_date" }. range accepts predefined values (last 7 days, month to date), dynamic patterns (Last 90 days), custom windows (2020-01-01 to 2023-03-01), or partial ranges (from 2020-01-01, until 2023-03-01). Pass a plain string for range — the whole object is NOT a string.Example:

date_range={
  range = "today"
  date = "string"
}

Attributes:

range: string - Time period to filter. Use presets like ‘last 7 days’, dynamic patterns like ‘Last 90 days’, custom ranges like ‘2020-01-01 to 2023-03-01’, or partial ranges like ‘from 2020-01-01’.
- Allowed values:
  - today
  - yesterday
  - last 7 days
  - last 30 days
  - last 3 months
  - last 6 months
  - last 12 months
  - previous week
  - previous month
  - previous quarter
  - previous year
  - this week
  - this month
  - this quarter
  - this year
  - next week
  - next month
  - next quarter
  - next year
  - week to date
  - month to date
  - quarter to date
  - year to date
  - all time
date: string - Date column to filter on. Required when the data has multiple date columns.

number

Set the width of this component (in percent) relative to the page width

Using the Filter Variable

Reference this filter using {{filter_id}}. The value returned depends on where you use it.

Context	Default Property	No Selection	Result

Available Properties

You can also access specific properties using {{filter_id.property}}:

.filter

Returns a complete SQL filter expression combining all dimension selections. Returns true when no values are selected.

{% dimension_grid id="dim_filter" data="orders" /%}

```sql filtered_orders
select * from orders
where {{dim_filter.filter}}
```

.selected

Returns an object with dimension names as keys and selected values as arrays. Useful for accessing individual dimension selections.

{% dimension_grid id="dim_filter" data="orders" dimensions=["category", "region"] /%}

Selected categories: {{dim_filter.category}}
Selected regions: {{dim_filter.region}}

.literal

Returns a human-readable summary of all selections.

{% dimension_grid id="dim_filter" data="orders" /%}

Active filters: {{dim_filter.literal}}
