Button Group

{% button_group
    id="category_filter"
    data="demo.daily_orders"
    value_column="category"
/%}

{% bar_chart
    data="demo.daily_orders"
    x="date"
    y="sum(total_sales)"
    filters=["category_filter"]
    date_grain="month"
/%}

Examples

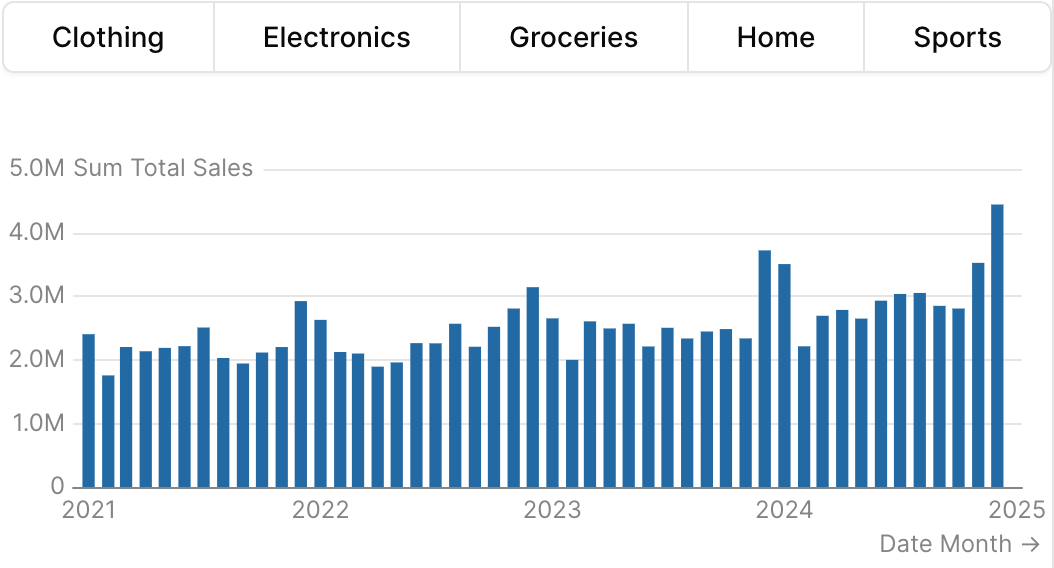

Using `filters`

{% button_group
    id="category_filter"
    data="demo.daily_orders"
    value_column="category"
/%}

{% bar_chart
    data="demo.daily_orders"
    x="date"
    y="sum(total_sales)"
    filters=["category_filter"]
    date_grain="month"
/%}

Using `where`

{% button_group
    id="category_filter"
    data="demo.daily_orders"
    value_column="category"
/%}

{% bar_chart
    data="demo.daily_orders"
    x="date"
    y="sum(total_sales)"
    where="category = {{category_filter}}"
    date_grain="month"
/%}

Using Inline SQL

{% button_group
    id="category_filter"
    data="demo.daily_orders"
    value_column="category"
/%}

```sql filtered_orders
select * from demo.daily_orders
where category = {{category_filter}}
```

{% table data="filtered_orders" /%}

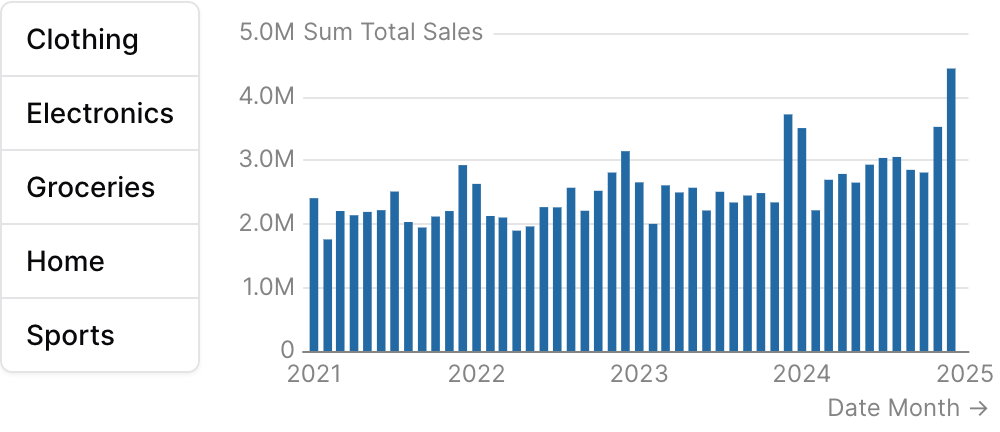

Vertical orientation inside a row

{% row %}

{% button_group
    id="category_filter"
    data="demo.daily_orders"
    value_column="category"
    orientation="vertical"
/%}

{% bar_chart
    data="demo.daily_orders"
    x="date"
    y="sum(total_sales)"
    filters=["category_filter"]
    date_grain="month"
/%}

{% /row %}

Attributes

string

required

The id of the button group to be used in a filters prop

string

Name of the table to query

array

Array of filter IDs to apply when querying for options

string

Column name to use as the value for each option, and the column to filter by when this button group’s id is used in the filters prop of a chart

string

Column name to use as the label for each option

string

Text displayed above the button group

string

Information tooltip text

string | number | array

Initial selected value(s)

boolean

default:"false"

Allows multiple selections

boolean

default:"false"

Automatically select the first option when the component loads

string

default:"horizontal"

Layout direction of the button group. Use “vertical” to stack buttons in a column. Best paired with a sibling element inside a row so the stack sits alongside its target content.Allowed values:

horizontal
vertical

number

Maximum height in pixels for the button stack when orientation="vertical". Buttons scroll if the list overflows. Ignored when horizontal.

string

Column name(s) with optional direction (e.g. “column_name”, “column_name desc”)

string

Custom SQL WHERE condition to apply to the query. For date filters, use date_range instead.

options group

Filter data to a time period. date_range is an OBJECT with range (the period) and optionally date (which column to filter on when the table has more than one). Shape: date_range={ range="last 12 months" date="order_date" }. range accepts predefined values (last 7 days, month to date), dynamic patterns (Last 90 days), custom windows (2020-01-01 to 2023-03-01), or partial ranges (from 2020-01-01, until 2023-03-01). Pass a plain string for range — the whole object is NOT a string.Example:

date_range={
  range = "today"
  date = "string"
}

Attributes:

range: string - Time period to filter. Use presets like ‘last 7 days’, dynamic patterns like ‘Last 90 days’, custom ranges like ‘2020-01-01 to 2023-03-01’, or partial ranges like ‘from 2020-01-01’.
- Allowed values:
  - today
  - yesterday
  - last 7 days
  - last 30 days
  - last 3 months
  - last 6 months
  - last 12 months
  - previous week
  - previous month
  - previous quarter
  - previous year
  - this week
  - this month
  - this quarter
  - this year
  - next week
  - next month
  - next quarter
  - next year
  - week to date
  - month to date
  - quarter to date
  - year to date
  - all time
date: string - Date column to filter on. Required when the data has multiple date columns.

Using the Filter Variable

Reference this filter using {{filter_id}}. The value returned depends on where you use it. The examples below show values for three scenarios:

No selection
Single select: “Electronics” selected
Multi select: “Sports” and “Home” selected (when multiple=true)

Context	Default Property	No Selection	Single Select	Multi Select
Inline SQL query	`.selected`	`''`	`'Electronics'`	`('Sports', 'Home')`
`where` attribute	`.selected`	`''`	`'Electronics'`	`('Sports', 'Home')`
Text / Markdown	`.literal`		`Electronics`	`Sports, Home`

Available Properties

You can also access specific properties using {{filter_id.property}}:

.filter

Returns a complete SQL filter expression ready to use in WHERE clauses. Returns true when no value is selected.

{% button_group id="category_filter" data="products" value_column="category" /%}

```sql filtered_products
select * from products
where {{category_filter.filter}}
```

No Selection	Single Select	Multi Select
`true`	`category = 'Electronics'`	`category IN ('Sports', 'Home')`

.selected

Returns the selected value(s) wrapped in quotes, suitable for SQL comparisons. Returns an empty string when no value is selected.

{% button_group id="category_filter" data="products" value_column="category" /%}

```sql products_by_category
select * from products
where category = {{category_filter.selected}}
```

No Selection	Single Select	Multi Select
`''`	`'Electronics'`	`('Sports', 'Home')`

.literal

Returns the raw unescaped selected value(s), useful for display in text or dynamic column selection.

{% button_group id="sort_column" data="products" value_column="column_name" /%}

```sql dynamic_sort
select * from products
order by {{sort_column.literal}}
```

No Selection	Single Select	Multi Select
“	`Electronics`	`Sports, Home`

.label

Returns the display label for the selected option(s). Falls back to the value if no label is defined.

{% button_group id="category_filter" %}
    {% option value="Electronics" label="Electronics" /%}
    {% option value="Sports" label="Sports" /%}
    {% option value="Home" label="Home" /%}
{% /button_group %}

Selected: {{category_filter.label}}

No Selection	Single Select	Multi Select
“	`Electronics`	`Sports, Home`

.fmt

Returns the format string associated with the selected option. For multiple selections, returns the first format.

{% button_group id="metric_selector" %}
    {% option value="revenue" label="Revenue" fmt="usd" /%}
    {% option value="growth_rate" label="Growth Rate" fmt="pct1" /%}
{% /button_group %}

{% big_value data={metrics} value=value fmt={{metric_selector.fmt}} /%}

No Selection	Single Select	Multi Select
“	`usd`	`usd`

Allowed Children

option
